Description
GEFSMSC

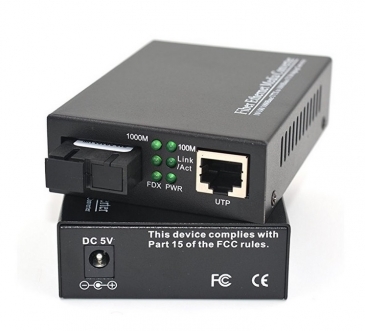

40Km 100/1000Mbps Gigabit Ethernet to Fiber Optic Media Converters -Singlemode Single fiber SC -1Pair
Meets IEEE802.3z / AB, 1000Base-T and 1000Base-SX / L
Extends fiber optic distance: Single mode up to 40Km
Max. Data Transfer Rate: 1000Mbps/1Gbps
Support full / half duplex mode Overview:
It is a 10/100 / 1000M adaptive power port (TX) and 1000M optical signal conversion device optical port (FX) between traditional Gigabit Ethernet can be through a core fiber optic link extension to 40KM. Products using the latest US IC, superior performance and quality. The use of special design allows the transceiver can operate stably for a long time. 6 LED lights could fully monitor the working status of the transceiver.
Main features:
1. Can automatically adapt to the 10/100 / 1000M and full duplex, half duplex transmission mode is truly adaptive Gigabit Fiber Transceiver
2. Support full / half duplex flow control
3. The maximum length of a single-mode optical fiber 10~40km
Technical Specifications:
1. Standard: IEEE802.3z / AB, 1000Base-T and 1000Base-SX / L
2. MAC Address Table: 4K
3. Cache: 256KB
4. Bandwidth: 3.2G, can achieve non-blocking wire-speed forwarding
5. Cable:UTP: 5E or Category 6 cable (max distance up to 100Meters)
6. Optical fiber (single mode): 8.3 / 125,8.7 / 125,9 / 125um (max distance up to 40KM)
7. Flow control: IEEE802.3x full-duplex flow control; half-duplex backpressure flow control
8. Power: AC 85-265V, 50Hz; DC 5V, 2A
9. Ambient temperature :: 0 ~ + 50 degree
10. Storage temperature :: - 20 ~ + 70 degree
Package Include:
• 1 Pair (A+B)
• 2 x power supply
• 1 x User manual
