Description

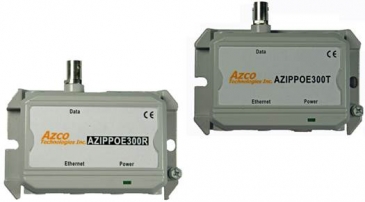

IP / POE - Power over Ethernet Extender is a "PoE extender over coax" solution. By using novel RF technology, it can extend the transmission distance of power and 100Mbps Ethernet data over 200-305m (650~1000ft) of RG6/RG59 video-grade coax cable & 100m / 328ft Cat5e/Cat6 in receiver side.
Standard: IEEE 802.3af
Speed: 10/100 Mbps, full duplexer
Cable: RG6 video-grade coaxial cable or above
Transmission distance: 200~305m(650~1000ft) coaxial cable + 100m UTP in RX side
Power Consumption: TX <=1W , RX<=2.5W
Class 3 powered device available
Output/Input Interface: BNC connector
Fast and easy to install
